Dangerous equipment
Explain when fall protection is required around rooftop equipment.
Open OSHA standard ↗Free resource for facility managers & EHS professionals
The EquipGuard Buyer’s Kit
Review the resources below, then submit your chiller dimensions for a scope-and-cost comparison.
Ready to scope your chiller?
Submit your measurements
Complete the online form with your chiller dimensions and equipment information. Dakota Safety will use the details to prepare a scope-and-cost comparison.
Specialty fall protection technical advisor and distributor for 16+ years.
Not sure the chiller platform is the primary exposure?Start with a fall-protection assessment →
Section 1
The compliance
proof package
Give EHS, loss control, and legal reviewers a concise, source-linked documentation set.
Modular guardrail
Package the relevant interpretation letter with the submittal record.
Search OSHA letters ↗System criteria
Use measurable criteria to review the proposed guardrail system.
Open OSHA standard ↗OSHA 1910.29(b) specification checklist
The standard sets a small number of measurable requirements. EquipGuard meets each one. Use this table to walk through compliance with your EHS Director or an OSHA compliance officer.
| 1910.29(b) requirement | Standard | EquipGuard |
|---|---|---|
| Top rail height | 42 inches, plus or minus 3 inches | 42 inches |
| Top rail strength | 200 lbs of force in any outward or downward direction | Meets 200-lb force standard (2014 LOI) |
| Midrail | Approximately 21 inches above walking surface | 21 inches |
| Vertical opening max | 19 inches maximum between rails | Less than 19 inches |
| Surface and edges | Smooth, no projection or laceration hazard | Powder-coated tubing, no exposed fasteners at grip height |
| Gate at opening | Smooth, no projection or laceration hazard | Self-closing safety gate standard |
Section 2

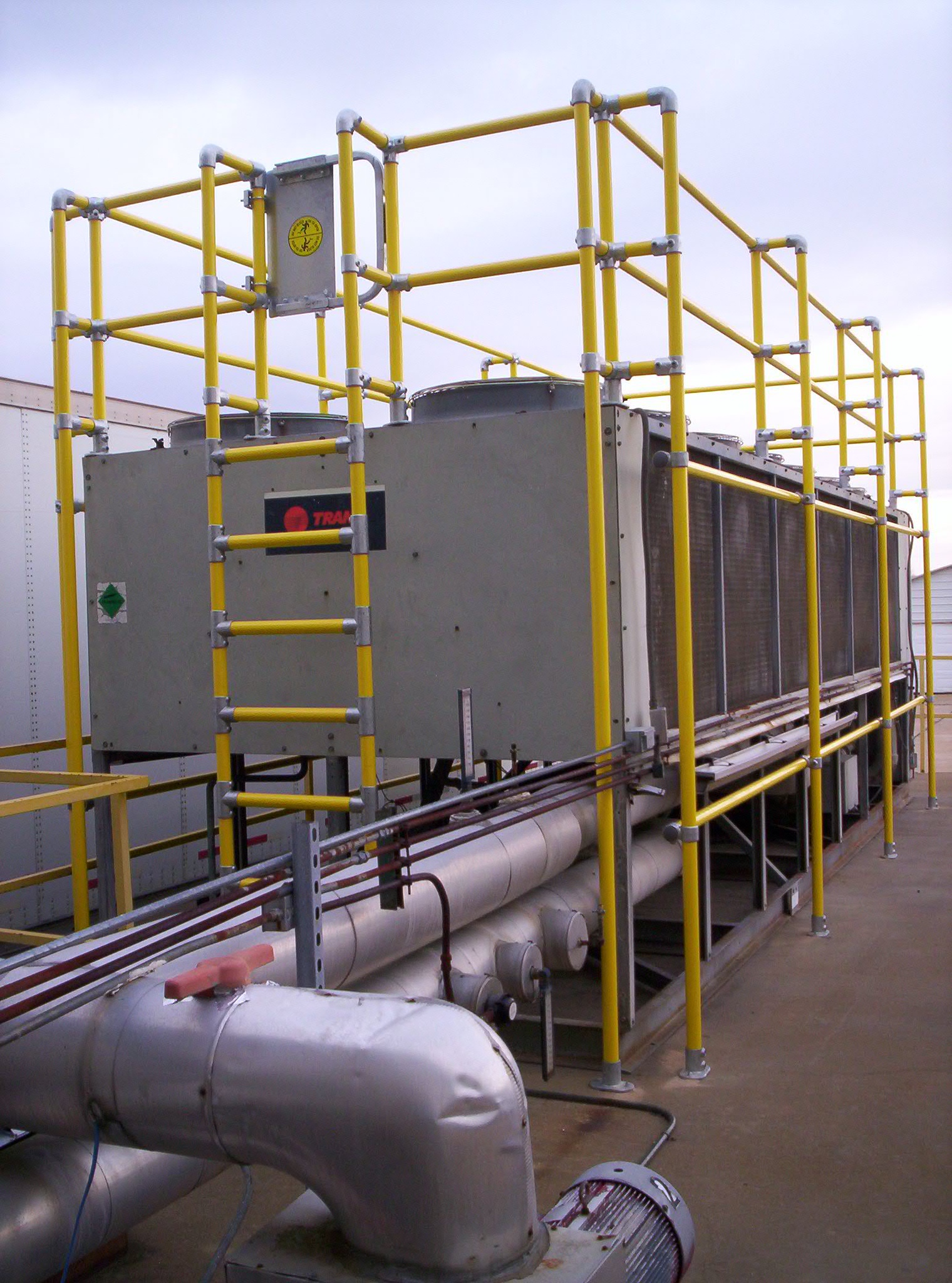

The chiller measurement guide
Gather the five required measurements from the roof, then submit them online. No printing is required.
The five measurements we need
- 01Nameplate data
Manufacturer, model number, and serial number from the chiller’s data plate. This tells us the structural rail dimensions and rated load capacity of the mounting frame before we configure anything.
- 02Overall chiller footprint
Length by Width of the unit at the base. Measure to the outermost point of the frame, not the cabinet. This determines the enclosure perimeter.
- 03Access points
Location and width of every side requiring service access. Note which sides need a self-closing gate vs. fixed rail sections.
- 04Ladder and roof hatch location
Distance and direction from the chiller to the nearest roof access point. This determines the safe approach path and whether walkway rail is needed between access and enclosure.
- 05Frame-mounted obstructions
Location of any piping, conduit, electrical disconnects, or service panels attached to or immediately adjacent to the structural frame that would affect bracket placement.
Section 3
Modular versus
custom-fabricated
For the Plant Manager or Procurement team evaluating options.
If you are holding a custom fabrication quote in the $15,000 to $30,000 range, this is the comparison your Plant Manager needs. Modular and custom fab both end at a compliant guardrail. Everything between the spec and the install is different.
| Dimension | Custom-fabricated | EquipGuard modular |
|---|---|---|
| Design process | Site-specific shop drawings, engineering review | Standard component configuration with assembly drawing |
| Typical timeline | 8 to 12 weeks design, fabrication, install | Days to weeks. Two-person crew, single day on-site. |
| Installation method | Certified welders, crane, hot-work permits, fire watch | Drill and hex key. No welding, no crane. |
| Attachment point | Welded or bolted to supporting structure. May penetrate roof. | Brackets bolt to chiller’s factory-rated structural frame. No roof attachment, no roof penetration. |
| Chiller independence | Rail attached to building structure. Requires coordinated install. | Rail mounts to chiller frame. Moves with the unit if relocated. |
| OSHA compliance | Compliant when properly engineered | Compliant under 1910.29(b). Confirmed by 2014 OSHA LOI. |
| Roof warranty impact | Risk of voiding warranty if penetrations involved | No roof penetration. Membrane stays intact. |
| Chiller replacement | Cut down and scrap | Disassemble from old unit. Reconfigure for new unit. |
| Typical cost | $15,000 to $30,000 or more (Dakota Safety market observation from quote history) | Varies with chiller footprint; scoped from your five measurements. |
Section 4
The CAPEX justification framework
Use a sourced scenario—not a universal incident-cost claim—to make the budget case credible.
Build the cost case
Direct incident costUse company loss history or current insurer data
Estimated indirect costCalculate separately with OSHA Safety Pays or internal data
Federal OSHA exposureSerious: up to $16,550; willful/repeated: up to $165,514 per violation*
Cost of actionInsert the current Dakota Safety quote
Operational impactDocument roof impact, downtime, schedule, and maintenance access
*2026 federal OSHA maximums. Actual classifications and penalties depend on the facts of an inspection. OSHA Safety Pays is an illustrative awareness tool using NCCI policy-year 2015–2017 data.OSHA penalties ↗Safety Pays estimator ↗

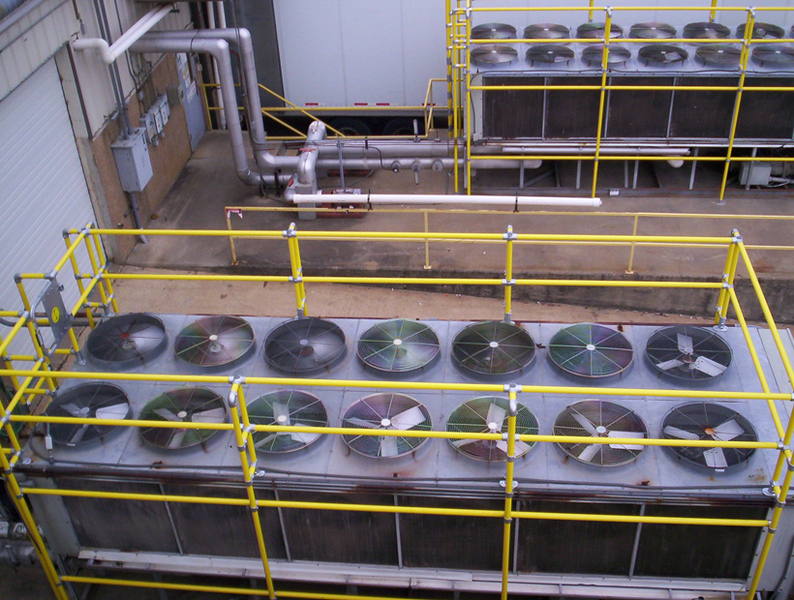

Practical product proof
Designed for real industrial service environments.
EquipGuard mounts directly to the chiller’s structural frame, helping protect service personnel without roof penetrations. Its modular components can be configured around equipment access points and reconfigured when site needs change.
- Company experience
- 16+ years
- Focus
- Specialty fall protection
- Support
- Technical product guidance
Ready to move forward?
Get the Buyer’s Kit. Measure the chiller. Build the case.
One resource package, one clear path from compliance review to a scoped solution.
Complete the EquipGuard measurement form
